Vacuum suction cup lifting tool plate suction lifting machine

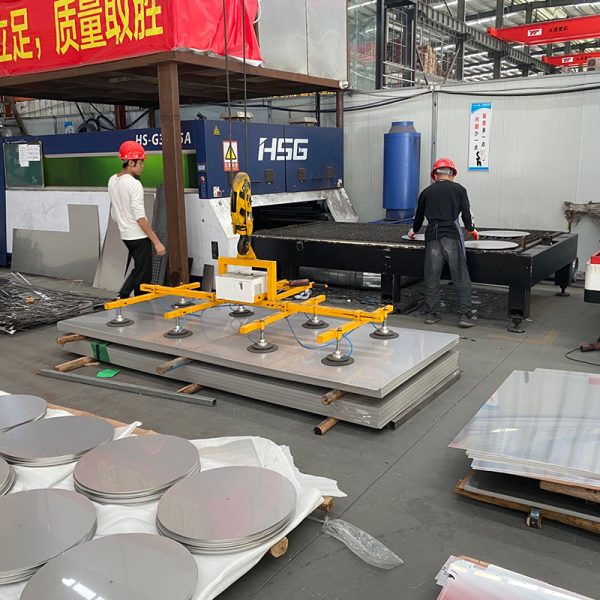

The plate suction lifter is specially used for handling various types of plates. It can grab workpieces made of stainless steel plates, aluminum alloy plates, wooden plates, marble plates and other materials. It is the first choice for most non-magnetic workpieces. The vacuum adsorption of the suction cup will not cause damage or deformation of the workpiece. It is a safe and reliable single-machine handling tool.

分类：

The plate suction lifter is specially used for handling various types of plates. It can grab workpieces made of stainless steel plates, aluminum alloy plates, wooden plates, marble plates and other materials. It is the first choice for most non-magnetic workpieces. The vacuum adsorption of the suction cup will not cause damage or deformation of the workpiece. It is a safe and reliable single-machine handling tool.

Key Features:

◆ Can be used for loading and unloading of laser cutting machines, plasma cutting machines, and shearing machines;

◆ Can be used as a fixture and integrated on a manipulator or articulated robot;

◆ Mainly used for non-magnetic materials such as stainless steel plates and marble plates;

◆ Imported vacuum pumps and valves;

◆ Load ranges from 300 to 2000KG;

◆ Accumulator and pressure detection alarm prompts to ensure safe operation;

◆ The position and size of the suction cup can be adjusted, and the material and shape of the suction cup can be customized;

◆ One person can operate it easily;

Product structure:


Product Details:

model load Suction cup size Number of suction cups Power supply Weight(KG) Dimensions (mm)
Pneumatic GQ-300 300KG 150MM 200MM Other customized 6 Compressed air 53.7 2000*1300*650
GQ-400 400KG 68
Plug-in GE-300 300KG 220V/380V power supply 59
GE-400 400KG 69.5
GE-600 600KG 82.6 3000*1500*650
GE-800 800KG 8 91.5
GE-1000 1000KG 10 101 5000*1500*650
GE-1200 1200KG 12 109
GE-1400 1400KG 14 118
GE-1600 1600KG 16 125
GE-2000 2000KG 20 132 6000*1500*650
Charging model GX-300 300KG 6 12V battery 67 2000*1300*650
GX-400 400KG 72
GX-600 600KG 84.5 3000*1500*650
GX-800 800KG 8 100.5
GX-1000 1000KG 10 107 5000*1500*650
GX-1200 1200KG 12 114
GX-1400 1400KG 14 121
GX-1600 1600KG 16 129
GX-2000 2000KG 20 136 6000*1500*650
